Strip Feed Press – Double 153 mm (603)2017-04-11T10:50:35+00:00

STRIP FEED PRESS DOUBLE – 153 mm (603)

MODEL RPD 90

We are pleased to present our last successful project, complete ends making line with double die tool 153 mm (603), output up to 450 pcs /minute.

  • Hammer with pneumatic compensation and sliding on bearings
  • Continuous lubrication with oil recovery
  • Electronic connection between crankshaft and strip feeder
  • Feeding bar independently driven by brushless motor
  • Feeding chain independently driven by brushless motor
  • Feeding chain with soft start for the first steps of the strip
  • Pick and Play System driven by brushless motor

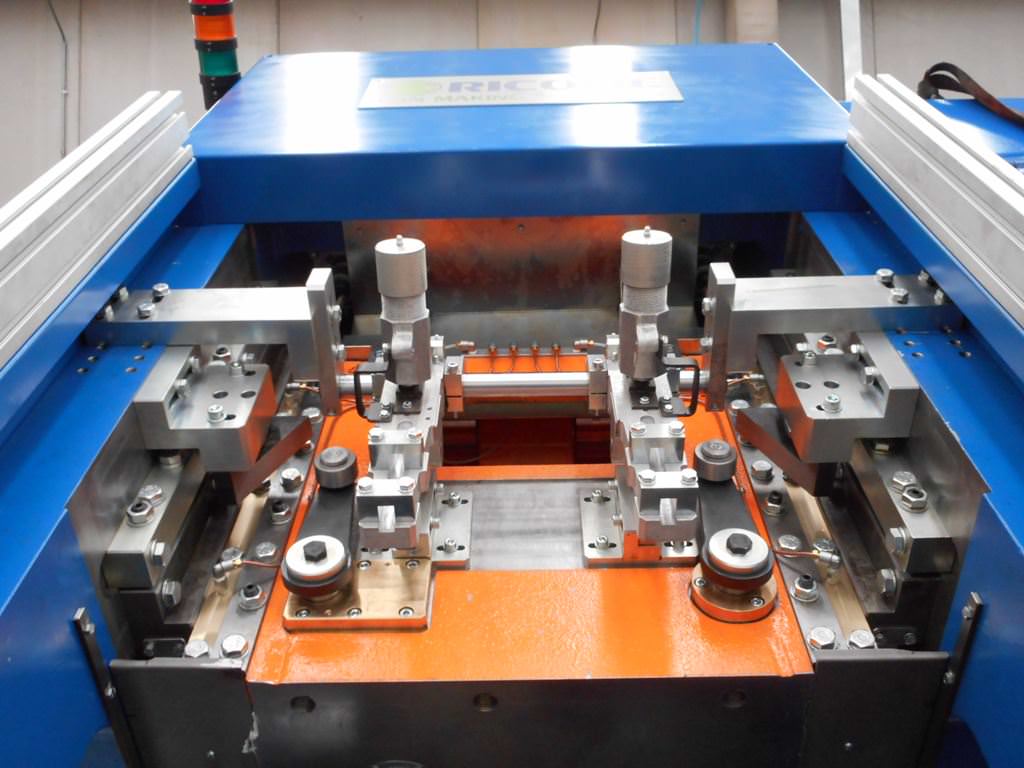

Hammer with pneumatic compensation

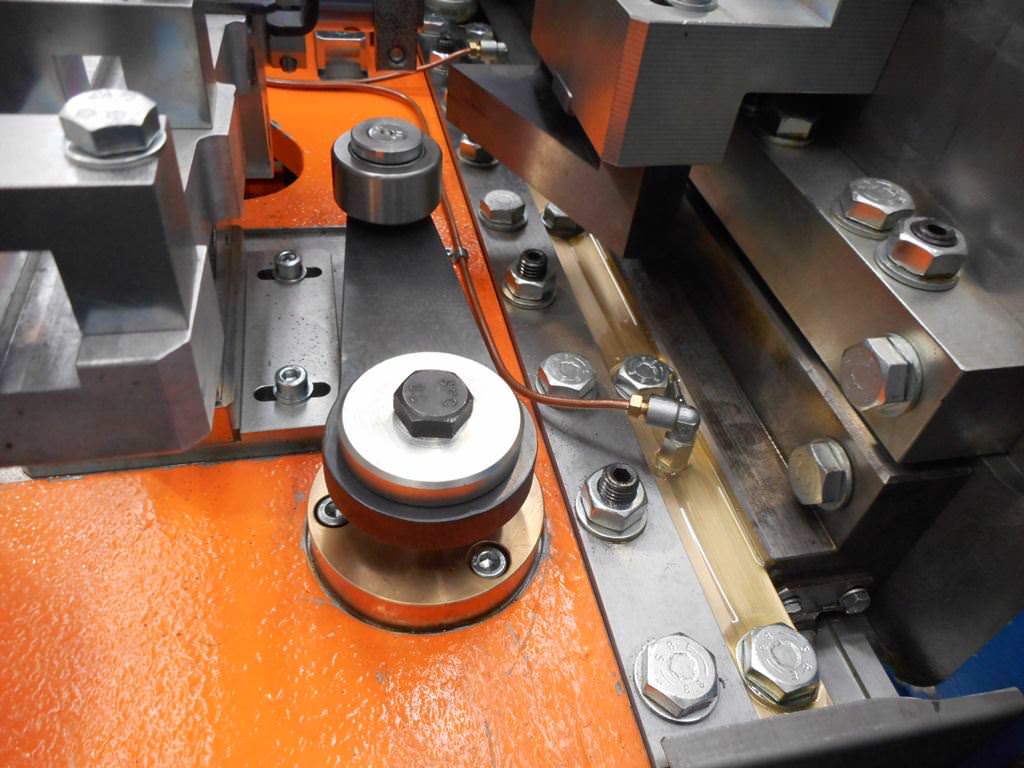

Hammer with sliding on bearings

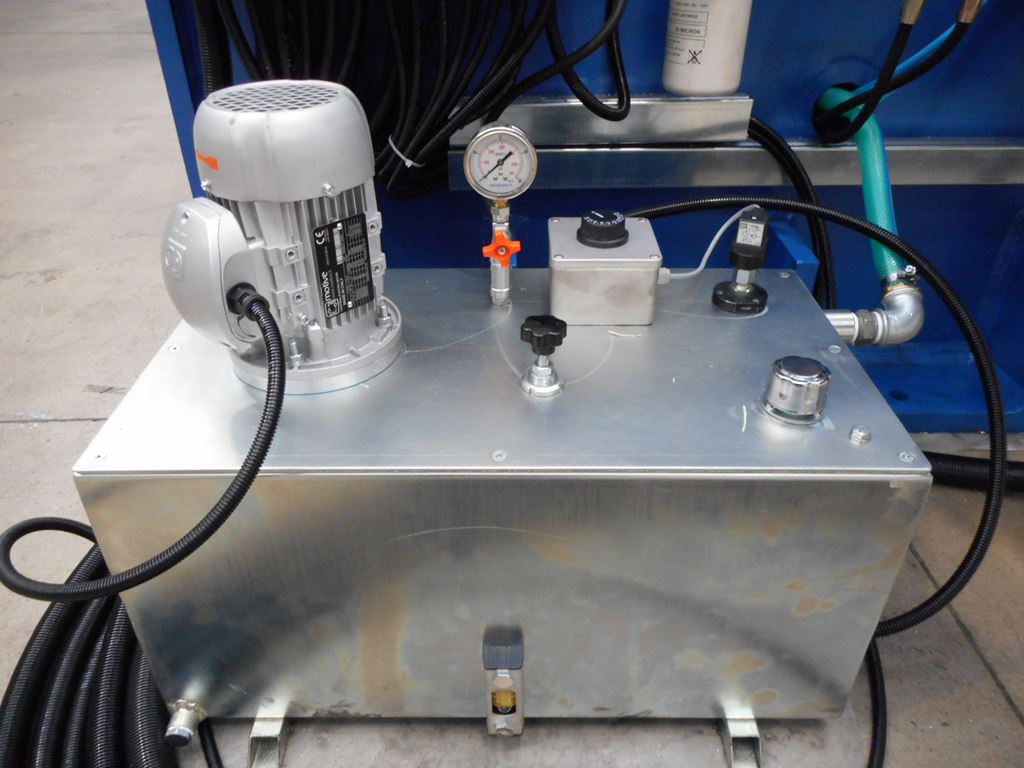

Continuous lubrication with oil recovery

Lubrication right side

Lubrication left side

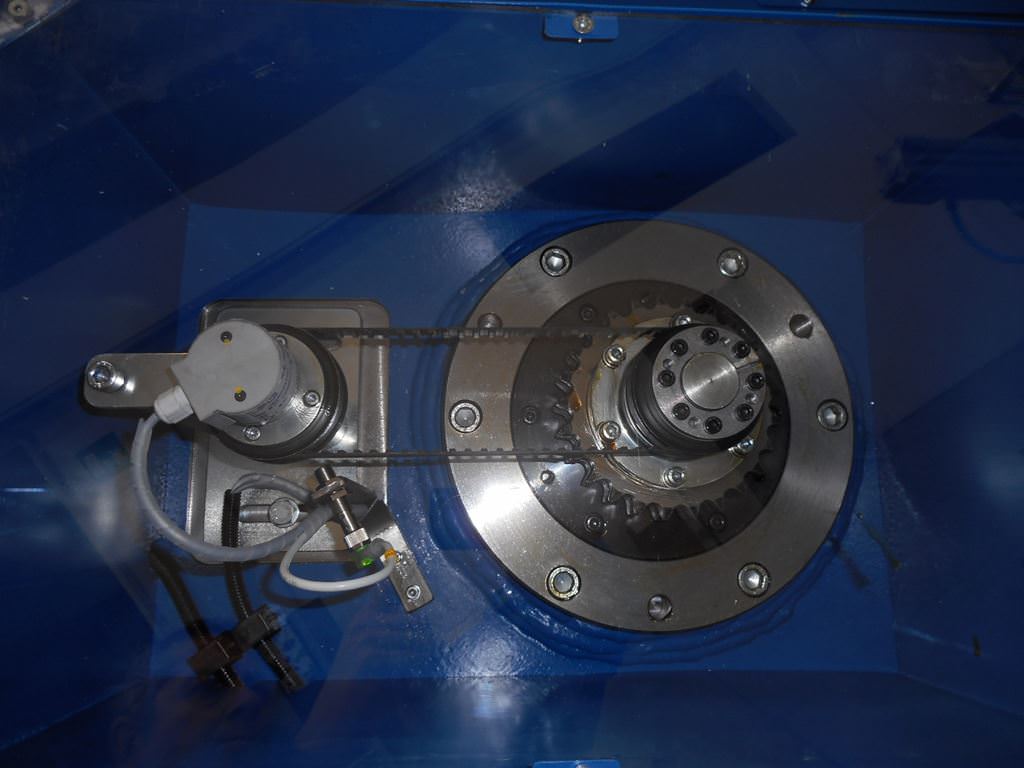

Electronic connection between crankshaft and strip feeder

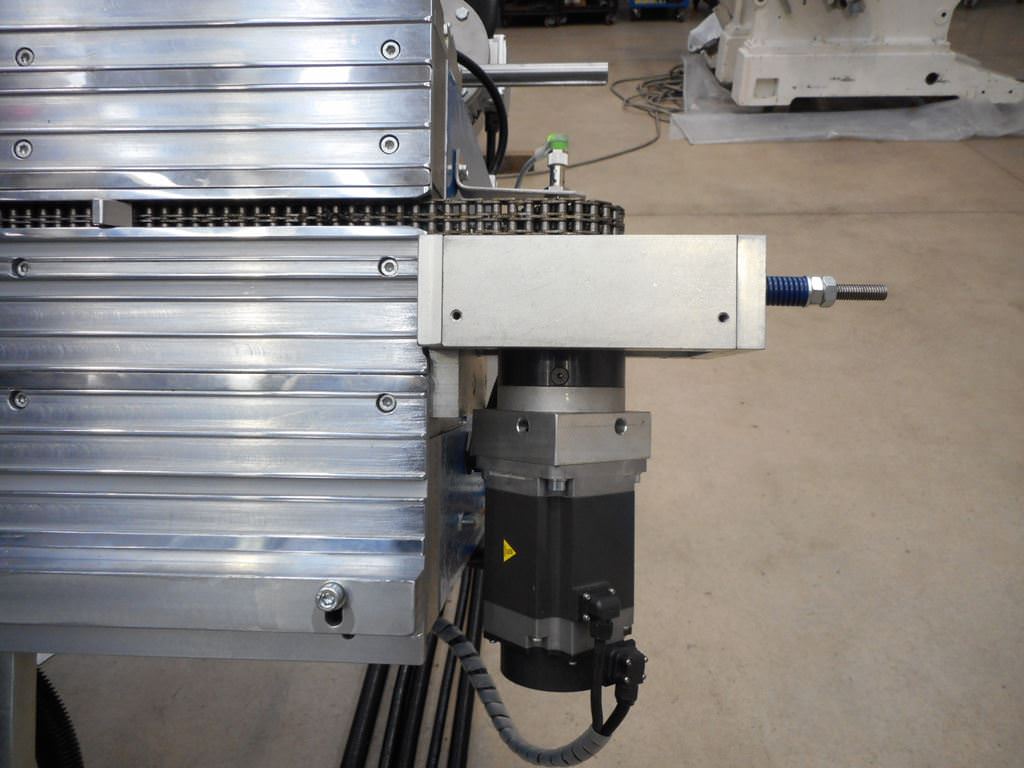

Feeding bar independently driven by brushless motor

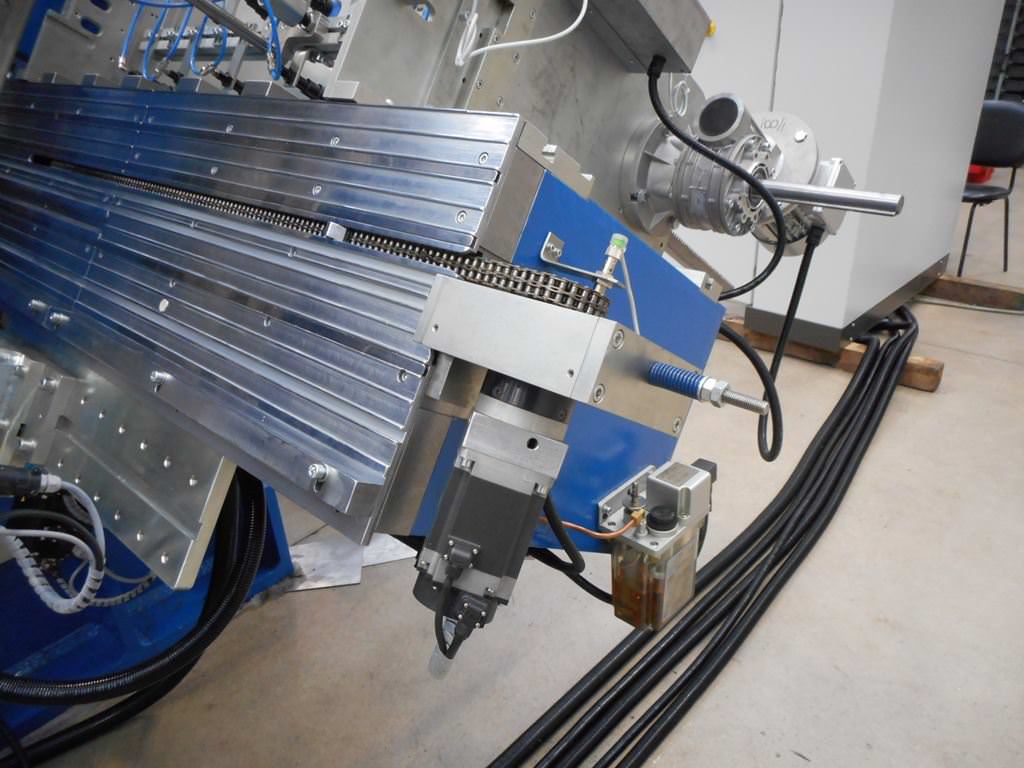

Feeding chain independently driven by brushless motor

Feeding chain with soft start for the first steps of the strip

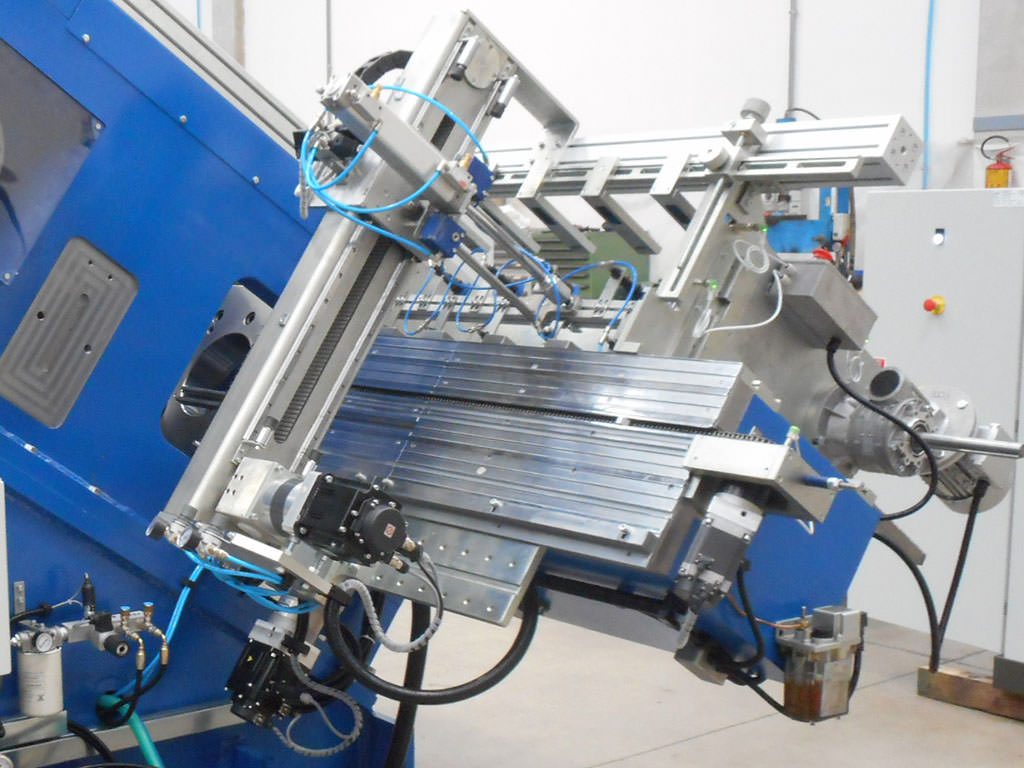

Pick and Play System driven by brushless motor
